PMI Introduces High Performance Ultra-Low Noise 2GHz-18GHz Amplifier

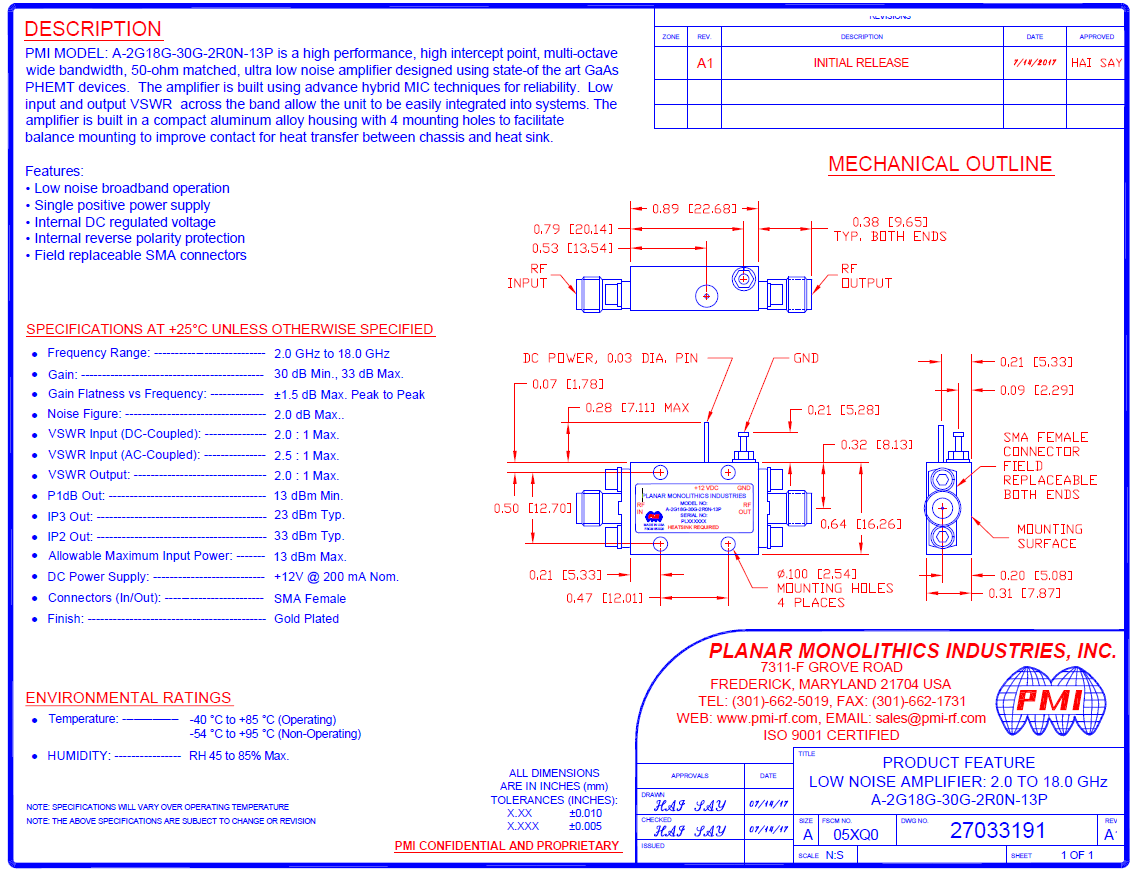

PMI Model No. A-2G18G-30G-2N-13P is a high performance, high intercept point, multi-octave, wide bandwidth, 50-Ohm matched, ultra-low noise amplifier designed using state-of-the-art GaAs PHEMT devices.  This amplifier is built using advanced hybrid MIC techniques for reliability.  Low input and output VSWR across the band allow the unit to be easily integrated into systems.  The amplifier is built in a compact aluminium allow housing with four mounting holes to facilitate balance mounting to improve contact for heat transfer between chassis and heat sink.

Click on the links below for more info:


TypicalCharacteristicsA-2G18G-30G-2R0N-13P.pdf (573KB)

About Planar Monolithics Industries (PMI):
Since 1989, Planar Monolithics Industries, an ISO 9001:2008 certified, ITAR registered company, has been supplying Components, Supercomponents, and Subsystems for applications in Telecommunications, Terrestrial, Satellite, and Mobile-Radio Communications, Defense (ECM, ECCM, ESM, Radars, and Electronic Warfare), Cable-TV, Navigation and Marine Electronics, FAA/DOT-Avionics, Ground Based Systems, and Microwave Landing Systems.
