Barry Industries Introduces 1kW RF Termination to 4.5GHz for Basestation, Broadcast and Radar Applications
Barry Industries, an ISO9001:2008 certified, ITAR registered manufacturer of high quality thick film resistors, terminations, attenuators and high temperature co-fired ceramic (HTCC) packaging introduces a RoHS compliant flange mount RF termination which dissipates 1000W with favorable return loss over a DC to 4.5GHz bandwidth.

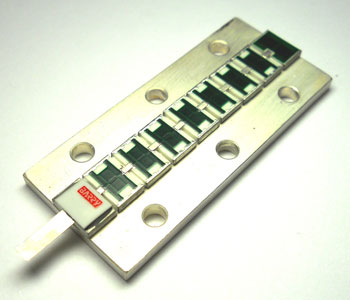

The thick film on Beryllium Oxide (BeO) T50R0-1000-6X termination, with its internally matched circuit architecture, has 20dB or better return loss from DC to 2.5GHz and 17dB to 4.5GHz.
The flange and input tab are constructed of robust Silver plated Copper. Overall footprint is 2.25” x 1” (57.15mm x 25.4mm).
With its 1000W power rating, low VSWR and stable 50Ω resistor element, the T50R0-1000-6X is ideal for crucial applications such as Mobile Radio Basestation, Broadcast and Phased-Array Radar.
Additionally, Barry offer’s many other high power flange mount terminations with power ratings from 10W to 5000W in numerous configurations.
Further information and samples of the T50R0-1000-6X are available, by fulfilling our form, here.
About Barry Industries:
Since 1977, Barry Industries, an ISO9001:2008 certified, ITAR registered company, has been supplying the defense, medical and communications industries with highest quality thick film chip resistors, terminations, attenuators high temperature co-fired ceramic (HTCC) packaging.
